BaxECM makes high-precision Electrochemical Machining (ECM) accessible to engineers and researchers.

ECM is a non-contact machining technology that produces mirror-smooth surfaces and complex geometries on any conductive material — without heat or tool wear.

The BX-ECM01 is a professional bipolar pulse generator with true pulse-by-pulse closed-loop current control.

For research purposes, the BX-ECM01 allows researchers to focus on doing ECM research, saving valuable time otherwise spent developing hardware.

For engineers designing new ECM machines, the BX-ECM01 greatly simplifies machine development and integrates easily through its industry-standard EtherCAT interface.

BX-ECM01

Name: BX-ECM01 Bipolar ECM Pulse Generator
Brand: BaxECM
Availability: InStock

True pulse-by-pulse current control

View Full Specs Request Quote

Veldhoven • Netherlands

From EDM to ECM

BaxECM is the official spin-off from BaxEDM. After years of making custom EDM machines accessible, we now deliver the same precision and ease to Electrochemical Machining.

Our first product — the BX-ECM01 — is a fully digital bipolar current-controlled pulse generator built for industrial and research ECM.

Veldhoven, Netherlands

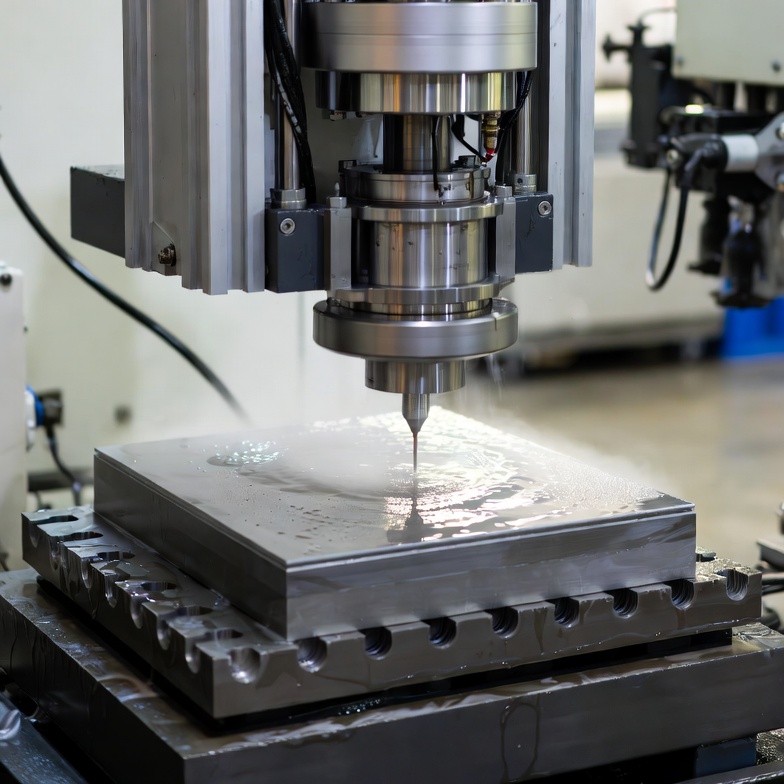

BaxECM precision electrochemical machining technology from BaxEDM team

BX-ECM01

Bipolar Current-Controlled ECM Pulse Generator

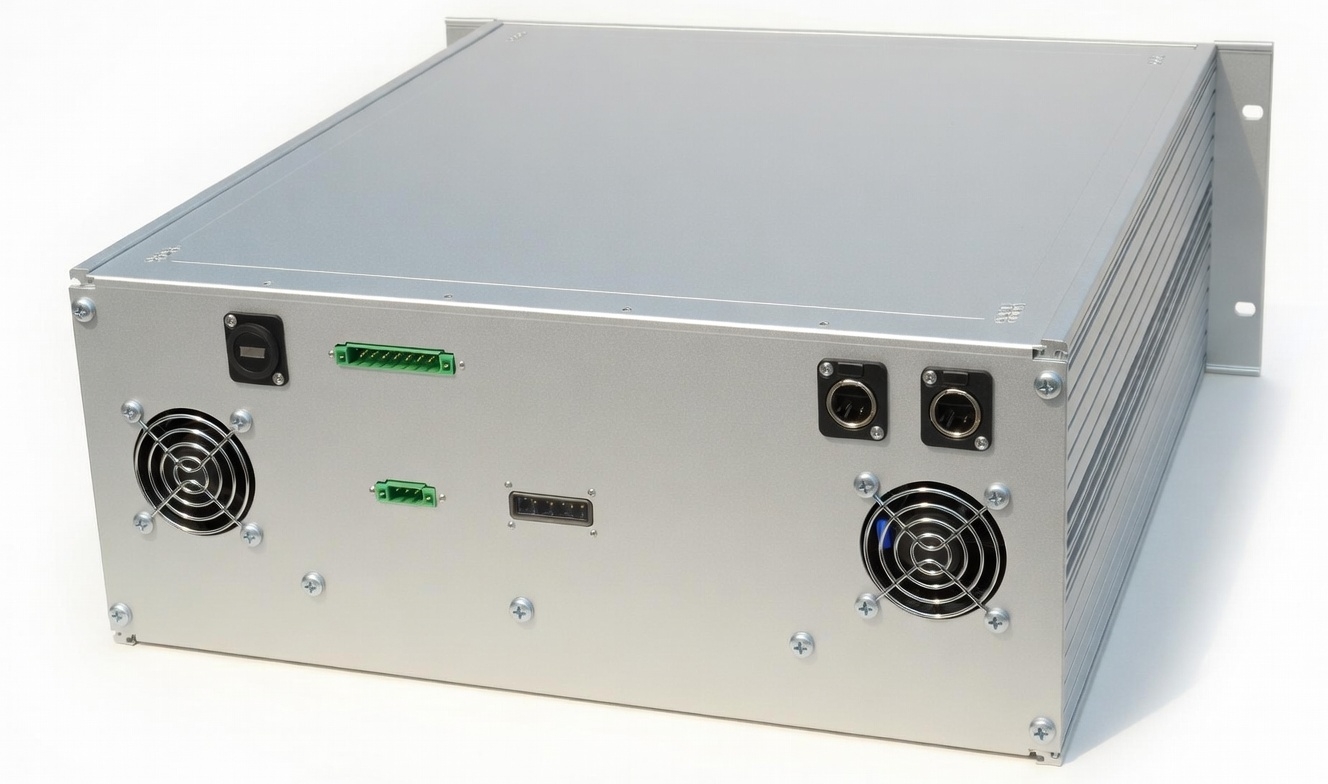

Rear View – EtherCAT, Power & Safety Connections

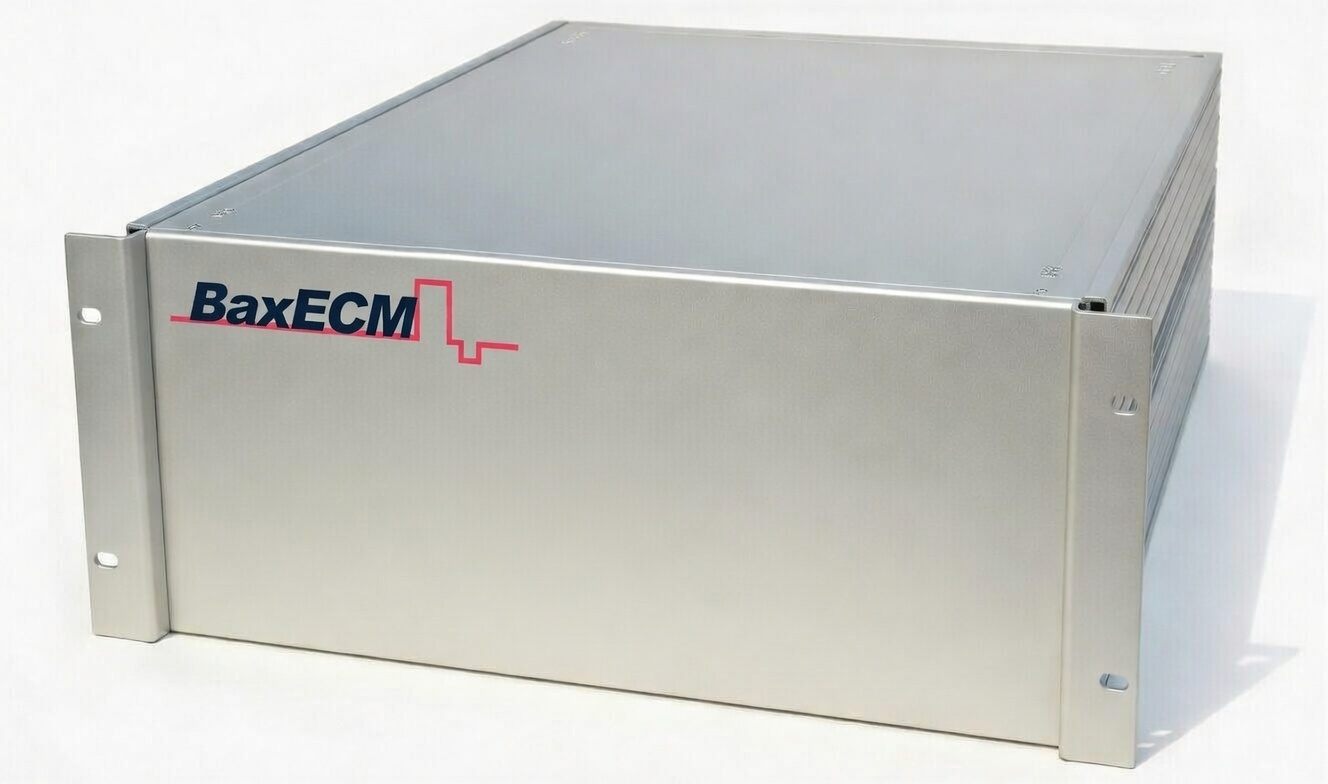

BX-ECM01 front view in 4U 19-inch rack-mount enclosure

Front View – 4U Rack-Mount Enclosure

The BX-ECM01 is a bipolar ECM pulse-by-pulse current-controlled pulse generator with full digital control over pulse amplitude and timing via EtherCAT. Intended for industrial electrochemical machining and research applications.

Mechanics

• Industry-standard 4U, 19-inch rack-mount enclosure
• Weight: 25 kg

Mains Input

• 100–240 VAC, 50/60 Hz, 2100 W maximum
• Active power factor correction (PFC)

Communication

• EtherCAT: Full control + real-time feedback
• USB: Firmware & calibration

ECM Interface

• ECM Ground
• Negative output (electrode)
• Positive output (auxiliary)
• Bipolar/AC output (JECM)

Pulse Specification

• Positive / negative / bipolar pulses
• Independently adjustable on/off times & amplitudes
• Max frequency: 330 kHz
• Min pulse width: 0.5 µs

• Pulse amplitude range: ±1 A to ±20 A
• Current-control settling time: <100 ns
• Total output power: 2000 W
• Open-circuit voltage: 150 V

Safety

ESTOP interface (5–24 V or dry contact). Instant power-stage shutdown.

Operation

EtherCAT or Windows 11 Dashboard with live waveform preview.

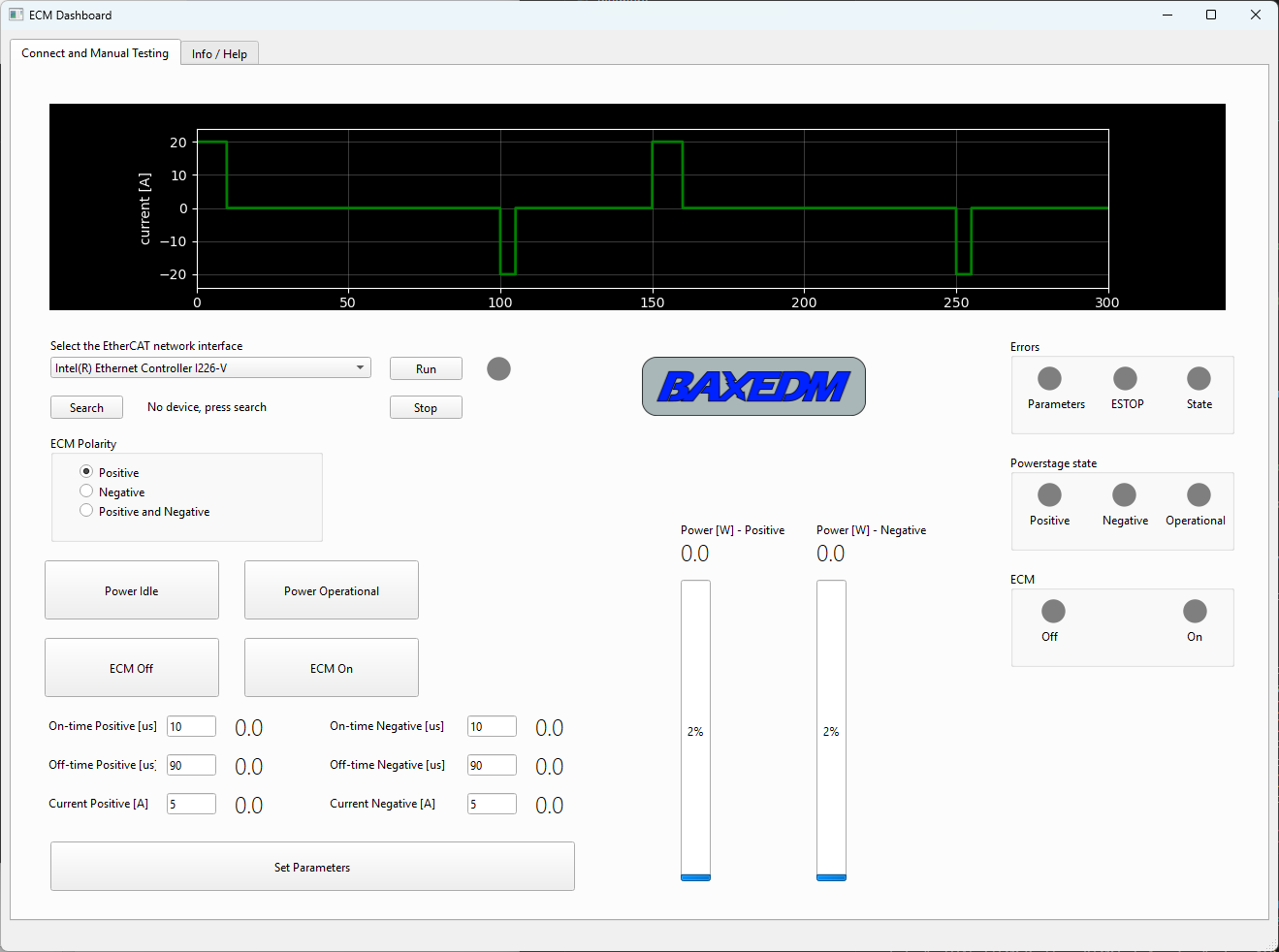

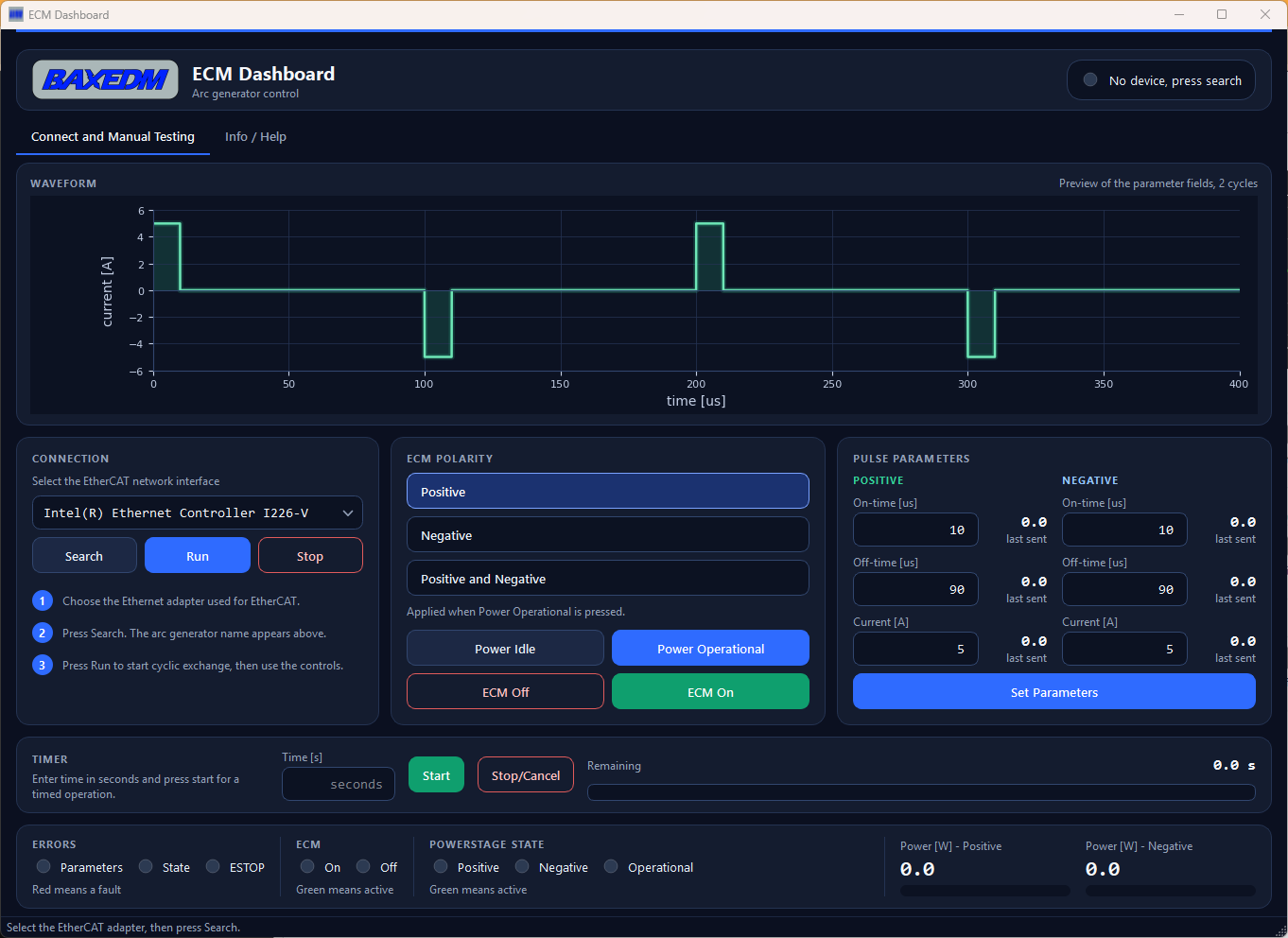

BX-ECM01 Windows 11 dashboard with real-time pulse waveform preview

Windows 11 Dashboard • Real-time pulse waveform preview

Request Quote

The BaxECM Advantage

True pulse-by-pulse current control

Traditional ECM generators

Most use a simple pulsed voltage source + current-limiting resistor.

This gives a pulse, but NOT true current control.

Current is affected by:

• Flushing conditions
• Electrolyte composition & temperature
• Machining speed
• Gap distance

Result: Hard to achieve accurate, repeatable current density.

✓

BX-ECM01

Closed-loop current control on every single pulse.

Eliminates all process dependencies. Gives you direct, precise control over electrode current density.

Pulse-by-pulse. Current-controlled. Every time.

Built for real ECM work and research - Accelerate your custom ECM machine development

⚡

Fully customizable ECM waveforms

Complete control over the waveform shape. Uni-polar, bipolar and even asymmetric amplitudes all with customizable timing allows you to research all ECM possibilities

🔌

EtherCAT Ready

Seamless integration into any CNC or lab setup

🛠️

From the BaxEDM team

Same engineers, same quality, same industrial ruggedness

⭐

5-Star Technical Support

Direct support by video call, email or onsite within the BeNeLux. Same legendary support as BaxEDM – praised for years.

Resources

📘

Full Specification Sheet

Download the complete BX-ECM01 datasheet (PDF coming soon)
